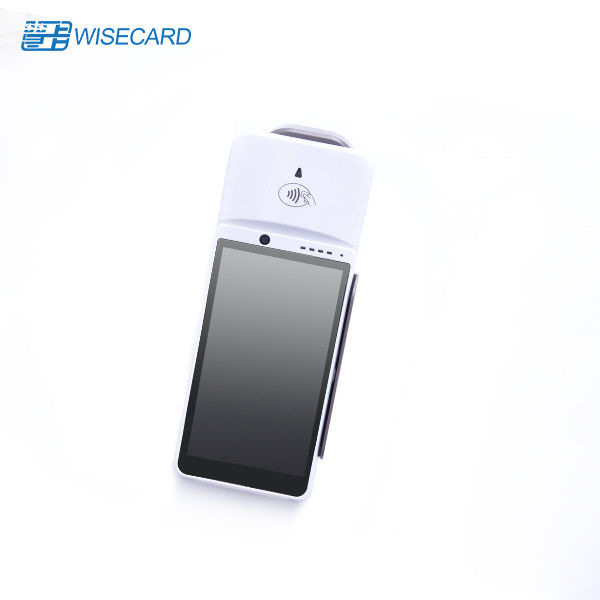

Android 7.0 Biometric POS Terminal , Portable POS Machine With Printer Built In Battery
Contact Person : Steven Yao
Phone Number : +86-13424312532
WhatsAPP : +8613424312532
| Minimum Order Quantity : | Negotiable | Price : | Negotiable |
|---|---|---|---|
| Packaging Details : | Paper Box | Delivery Time : | 1-4 weeks |
| Payment Terms : | T/T | Supply Ability : | 10000 units per month |
| Place of Origin: | China | Brand Name: | Wisecard |
|---|---|---|---|
| Certification: | CE Rohs | Model Number: | WCT-S6 |
|
Detail Information |
|||
| CUP: | 4 Core Processor | OS: | Android 7 Or Above |
|---|---|---|---|
| VeinModule: | High Speed 1:1, 1:N | FLASH: | 16GB EMMC |
| Certification R: | ICC EMV Contact L1 / PBCO L1 EMV Contact L2 / PBOC L2 | Virtual Keypad: | Home Key, Function Key, Numeric Keys. |
| USB Standard: | USB Type C 2.0 | Battery: | 3.7V 5800mAh |
| Highlight: | VISA JCB Android POS Terminal,16GB EMMC Android POS Terminal,Biometric Vein Module POS Machine |
||
Product Description
WCT-S6 is a powerful four core Android OS smart POS terminal with differentiating security method of latest finger vein module which makes it bring you highest security level. Besides, it also comes with facial and ID recognition modules for application flexibility and more securities.
High security: high security processor+4 core cortex-A53 processor
Vein module: high speed 1:1, 1:N vein module
Communication: WIFI, Bluetooth, 3G, 4G, GPS
Full touch operation: 5.5’ touch display; signature capture; fully video capable; optimized forvalue-added services
| WCT-T60 Android POS Configuration: | ||
| Type | Product Specification: | |
| Platform | Application Processor | MT8735 ( 4-Core ARM Cortex-A53,1.3GHz ) |
| RAM | 2GB LPDDR3 | |
| FLASH | 16GB EMMC | |
| OS | Android 7.0 | |
| Security Processor | MAX32555 (DeepCover Secure microcontroller) | |
| MEMORY | 60MHz Core Operating Frequency 512KB Dual-Bank Flash Memory with Cache 96KB System SRAM 1KB AES Self-Encrypted NVSRAM 256-Bit Flip-Flop-Based Battery-Backup AES Key Storage |
|
| Wireless | Wireless Standard | LTE-FDD/TDD-LTE/UMTS/HSPA/HSPA+/DC-HSPA+/EVDO/TDS-CDMA/EDGE/GPRS |
| 4G | LTE-FDD : B1/B3/B8 (TBD) | |
| TDD-LTE : B38/B39/B40/B41 | ||
| 3G | UMTS/HSPA/HSPA+/DC-HSPA+ : B1/B8 | |
| TDS-CDMA : B34/B39 | ||
| EVDO : BC0 | ||
| 2G | EDGE/GPRS : B3/B8 | |
| WLAN | 2.4GHz ISM 2402MHz~2482MHz | |
| BT 4.1 LE | 2.4GHz ISM 2402MHz~2480MHz | |
| USIM | USIM | 2 slots |
| GPS | GPS | GPS, GLONASS |
| Verification | Verification | Finger Vein Biometric Verification Module |
| LCD and Touch Panel | LCD Pixels | 720*1280 IPS |
| LCD | 5.5 inch | |
| Touch Panel | G+F+F, Capacitive,Multi Touch. | |
| Keypad | Physical key | Power ON/OFF, Volumn up, Volumn down. |
| Virtual Keypad | Home Key, Function key, Numeric Keys. | |
| Audio | Speaker | 1 W x 1 |
| Microphone | Voice input | |
| USB | USB Standard | USB Type C 2.0 |
| Other | Charge Battery, OTG support | |
| Serial Port | RS232 | POGO PIN ON REAR CASE |
| Camera | REAR | 8Mega Pixels, CMOS, AF, QR/2D barcode, JPEG picture, Video. |
| FRONT | 2Mega Pixels, CMOS, JPEG picture, Video. | |
| NFC | Standard | ISO14443 type A/B ( ISO 18092 NFC, ISO/IEC 14443&7816, FeliCa support ) |
| Spectrum | 13.56MHz | |
| IC card | Standard | ISO 7816 (1.8V / 3V / 5V T=0, T=1.) |
| PSAM card | PSAM | 4 slots ( compliant with ISO7816 ) |
| MSR | Standard | ISO 7810, 7811, 7813; Triple Track, Bi-Directional; swipe speed 10cm/sec - 100cm/sec. |
| Battery | Battery type | Li-ion polymer battery |
| Capacity | 3.7V, 5800mAh | |
| Charger | 5V/2A | |
| Backup battery | coin battery | CR2032 |
| LED indicator | Status | Triple color LED ( RED/GREEN/Orange) |
| NFC indicator | blue/yellow/green/red | |
| Certification | ICC | EMV contact L1 / PBCO L1 |
| EMV contact L2 / PBOC L2 | ||
| NFC | EMV contactless L1 / qPBOC L1 | |
| EMV contactless L2 / qPBOC L2 | ||
| Security | PCI 5.0 | |
| UPTS 2.0 | ||
| Operating environment | Temperature | -5 to +50 °C |
| Relative humidity | 10 % to 85 % RH | |
| Storage environment | Temperature | -10 to +60 °C |
| Relative humidity | 10 % to 90 % RH | |
WCT-S6 is a four core Android OS smart POS terminal with differentiating security method of latest finger vein module which makes it bring you highest security level.
WCT-S6 is a powerful terminal with ID, vein and facial recognition modules, which enables us to integrate with Security Access, ID verification, MOC purpose. This terminal is targeted to verification and payment industry.
WCT-S6 is also embedded with secure element to be able to pass EMV and PCI certification. With fully loaded comm module and various verification options, it can meet various purposes and scenarios for verification and transactions. This terminal is equipped with Android 7.0 and delicate touch display to maximize the customer experience and provide more colorful application features beyond your expectation!
Q: Do you offer warranty for the device?
A: Yes, we offer one year warranty& lifelong technical support
Q: What is your MOQ
A: MOQ is 1pcs
Q: What is your payment term?
A: T/T is preferred
Q: How to get software and SDK?
A: Software and SDK is free. Will share download link via drop box after you place order.
Wisecard (a WiseGroup company) is a global solution provider that has been providing innovative payment and secure solutions to financial institutions, government entities and telco operators worldwide.
Wisecard have been providing EMV smart card, EMV biometric card, EMV perso software, card issuance, EMV embossers, Smart POS machine, Android POS, POS terminals, smart banking, smart teller machine, kiosk, vending machine, biometric POS, Hardware Secure Module, mobile payment platform, private label card solution, prepaid card solution, card management system to partners in more than 60 countries worldwide. Wisecard’s product suite empower large global financial institutions and government sectors as well as small to medium sized retail banks.
Wisecard solutions are adapting to the highest and latest secure standard, and the solutions have been fully tested and certified by international test labs, like FBI, STQC, EMV, PCI DSS, PA DSS, VISA, MasterCard, China UnionPay, JCB, AmEx, Discover, RuPay and etc.
Notes: FBI, STQC, EMV, PCIDSS, PADSS, Visa, MasterCard, China UnionPay, JCB, AmEx, Discover, RuPay is a registered trademark. All trademarks referenced here are the property of the respective owners.
