Contact Person : Steven Yao
Phone Number : +86-13424312532
WhatsAPP : +8613424312532
| Minimum Order Quantity : | Negotiable | Price : | Negotiable |
|---|---|---|---|
| Packaging Details : | export carton | Delivery Time : | 2-6 weeks |
| Payment Terms : | T/T | Supply Ability : | 1000 units per month |
| Place of Origin: | China | Brand Name: | Wisecard |
|---|---|---|---|
| Certification: | CE, Rohs | Model Number: | 260T |
|
Detail Information |
|||
| Application: | Bank Branch | Display: | 19 Inch TFT LED Touch Screen |
|---|---|---|---|
| EPP: | PCI 4.0 Certified 16 Buttons | CardPrinter: | Flat Card Printer With Card Reader |
| Embossing: | Support Embossing And Rear Indent, Tipping | Camera: | 720P |
| CardReader: | Contactless, Contact, Magstripe | Fingerprint: | Capacitive Fingerprint Scanner |
| Highlight: | STM self service teller machine,Rohs self service teller machine,STM bank branch teller machine |
||
Product Description

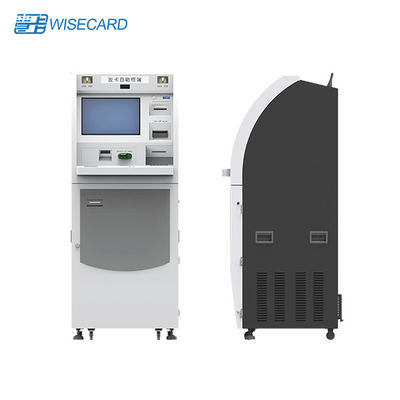

Smart Self-service Equipment Smart Teller Machine STM ATM for Bank Branch Business
Kiosk with Instant Card Issuance, A Lobby Instant Card Issuance System
On-demand brilliant and highly secure card issuance
Wisecard Smart Banking Solution
The Wisecard Smart Banking solution is highly compatible with numerous of CMS packages and Third Party systems.
Additionally we offer a Software Development Kit(SDK)to implement customizations inhouse,or customization service to meet a bank' s specific requirements.
Financial institutions, service bureaus, retailers, governments and other card issuers can now issue in a highly secure manner personalized embossed cards on demand, either individually, or in low-volume batches with our instant issuance system. This lobby system empowers Banks to enhance their customer experience, or implement new forms of customer service provision.
FEATURES
SMART
Smart Terminals
Smart Kiosks
Smart Service
EFFICENCY
Better Efficiency
Cost Saving
High Performance
UNIFIED
Unified Platform
Unified Interface
Unified Business Process
PERSONALIZED
Personalized Design
Personalized Service
Personalized Culture
| WCT-260T Smart Teller Machie Specification | |
| Module | Technical Specifications |
| Cabinet & Accessories | Hard, thick and non-deforming materials |
| Surface treatment process: rust-proof, antiseptic, anti-friction | |
| Neat internal wiring, using drag track and front door for easy maintenance | |
| Independent ventilation system in line with bank requirements | |
| SIU | Sensors and Indicators Unit |
| Industrial PC | CPU: Core i series or equivalent technical indicators |
| Hard drive: 500G | |
| Memory: 4G | |
| Display | Display: 19'' 4:3 TFT LED |
| Resolution: 1024*768 (inclusive) or more | |
| Anti-glare (film): left and right viewing angle < = 30 degree | |
| Touch Screen | Touch Screen: 19''4:3 |
| Resolution: 4096*4096 | |
| Special requirements: anti-dust/ riot/ scratch | |
| Receipt Printer | Support full graphic printing |
| Width: 80mm | |
| Chinese font: Arial or traditional; English font | |
| Support GB 18030 character set and GBK character set | |
| Black spot recognition | |
| Continuous paper printing, automatic cutting, to provide semi-cut/ full cut function | |
| EPP | PCI 4.0 certified |
| 16 buttons | |
| Flat Card Printer (with card reader) |
Support duplex printing |
| PASS BCTC test and certification | |
| Support PBOC, EMV standards | |
| Six card hoppers with independent lock | |
| Print: picture, photo, name, validity, CVV and etc | |
| Six card-dispensing box, total capacity are: 600 pcs flat card | |
| Double card-collecting box: total capacity: 150 pcs flat card | |
| Embosser | Support Embossing and rear indent, Tipping |
| Pass BCTC test and certification | |
| Support PBOC, EMV standars | |
| Camera | Support concealment |
| Support 720P | |
| ID Card Reader | Electrically load in card |
| Meet the requirements of the Ministry of Public Security | |
| Compulsory return ID card | |
| Fingerprint Scanner | Capacitive |
| Detection of dermis | |
| Contactless Card Reader | Secure module avaliable |
| Follow ISO/ IEC 14443 standard | |
| Support EMV standard requirements | |
| Power fail safeguard function for the data stored in the card reader | |
| Human Sensor | Can sense that customer pis standing in front |
| OS | WIN7, WIN10 or other OS |
| Digital Pen | Handwriting fidelity; Integrated handwritten singnature board+electromagnetic induction pen |
| Bar Code Scanner | Support both one dimension and two-dimension code (QR code) |
FAQ:
Q:How long is the warranty time for your products?
A: Our officially promised warranty time is one whole year after delivery at best.
Q: Do you have your own enclosure factory?
A:Yes we do have our own enclosure factory,and we have the best structural Engineer,we hope to provide you with the best product, so OEM is also welcome.
Q:Do you give any discount ?
A: We are Manufacturer, so we are able to give you the best price and best service at the same time.
Q:Do you have any certifitcations?
A: Yes,we have CE,CCC,FCC,RoHS.
Packaging & Delivery
Port: shenzhen shekou seaport
Lead Time :
| Quantity(Units) | 1 - 10000 | >10000 |
| Est. Time(days) | 30 | To be negotiated |
Supply Ability: 1000 Unit/Units per Day
Company Information:
Wisecard (a WiseGroup company) is a global solution provider that has been providing innovative payment and secure solutions to financial institutions, government entities and telco operators worldwide.
Wisecard have been providing EMV smart card, EMV biometric card, EMV perso software, card issuance, EMV embossers, Smart POS machine, Android POS, POS terminals, smart banking, smart teller machine, kiosk, vending machine, biometric POS, Hardware Secure Module, mobile payment platform, private label card solution, prepaid card solution, card management system to partners in more than 60 countries worldwide. Wisecard’s product suite empower large global financial institutions and government sectors as well as small to medium sized retail banks.
Wisecard solutions are adapting to the highest and latest secure standard, and the solutions have been fully tested and certified by international test labs, like FBI, STQC, EMV, PCI DSS, PA DSS, VISA, MasterCard, China UnionPay, JCB, AmEx, Discover, RuPay and etc.
Notes: FBI, STQC, EMV, PCIDSS, PADSS, Visa, MasterCard, China UnionPay, JCB, AmEx, Discover, RuPay is a registered trademark. All trademarks referenced here are the property of the respective owners.
