Auto Sense Handheld Barcode Scanner Portable USB 1D 2D Laser Barcode Reader
Contact Person : Steven Yao
Phone Number : +86-13424312532
WhatsApp : +8613424312532
| Minimum Order Quantity : | Negotiable | Price : | Negotiable |
|---|---|---|---|
| Packaging Details : | packing details: standard export carton, can be customized. port: Shen Zhen ports | Delivery Time : | 7 work days |
| Payment Terms : | T/T | Supply Ability : | 100,000 pcs per week |
| Place of Origin: | China | Brand Name: | Wisecard |
|---|---|---|---|
| Certification: | SGS/ROHS/CE/ISO/CE RED | Model Number: | barcode scanner |
|
Detail Information |
|||
| Imaging Sensor: | 1280*1024 CMOS | Decode Accuracy: | Code 39 4mil |
|---|---|---|---|
| System Compatibility: | Linux、Android、WindowsXP、7、8、10、MacOS | Code Available: | 1D, 2D Codes Printing On Paper Or Film Or Screen |
| Waterproof And Dustproof: | IP54 Compliant | Operating Temperature Range: | -20-55°C |
| Host Size: | (length, Width, Height Mm)168mm*85mm*62mm | Package Size: | (length, Width, Height Mm)240*140*89mm |
Product Description

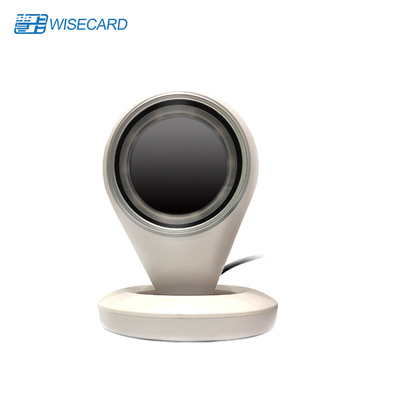

2021 New omnidirectional Desktop Scanner 1D QR 2D Barcode Reader Supermarket Price Checker
Description Of Desktop Scanner
WCT-A3 Bluetooth CCD barcode scanner that can read 1D & 2D barcodes both on paper and screen. WCT-Q3 which is built at highest secure standard, the High frequency LED soft light technology, soft light lamp does not flicker, completely eliminate the stimulation and injury to human eyes. WCT-Q3 also supports online upgrade, custom update code system functions only need to update the firmware, completely solve customer worries.
Feature Of Desktop Scanner
1. With 1280*1024 CMOS Imaging sensor, which can capture bigger and detailed image.
2. 1DCapacity: EAN-8,EAN-13,EAN-13 2 add-on, EAN-13 5 add-on,ISSN,ISBN,UPC-A,UPC-E,Code11,Code 32 and etc.
3. 5mil code39: 1-15cm
4. UPC-13mil: 1-33cm
Specification Of Desktop Scanner
|
Performance Parameters |
Picture Sensor | 1280*1024 CMOS | |||||||
| Capacity | 1D | EAN-8,EAN-13,EAN-13 2 add-on, EAN-13 5 add-on,ISSN,ISBN,UPC-A,UPC-E,Code11,Code 32,Code 39,Code 93,Code 128,Codabar,Industrial 2 of 5,Interleaved 2 of 5,Matrix 2 of 5,GS1-128,GS1 DataBar(RSS14),GS1 DataBar Limited,GS1 DataBar Expanded | |||||||
| 2D | PDF417,MicroPDF417,MicroQR, Data Matrix,QR,Aztec | ||||||||
| Depth of Field | Tested Code | Minimum | Maximum | ||||||
| 5mil code39 | 1cm | 15cm | |||||||
| UPC-13mil | 1cm | 33cm | |||||||
| 20 mil code39 | 1cm | 40cm | |||||||
| 20 mil QR Code | 1cm | 28cm | |||||||
| System Compatibility | Linux,Android,Windows XP,7,8,10,MACOS | ||||||||
| Decode Accuracy | Code 39 4mil | ||||||||
| Code Available | 1D, 2D Codes printing on Paper or film or screen | ||||||||
| Scan Rate | 30 Fps | ||||||||
| Scan Pattern | Automatic induction continuous scan | ||||||||
| Keyboard support | American-English, French, Italian, German, Spanish, Japanese, Russian, Arabic, Irish, Polish, Dutch, Czech, Portuguese (Portuguese, Brazilian), Swedish, Turkish F, Turkish Q, Greek, Finnish, Belgian (French), British-English | ||||||||
| Barcode language support | Simplified Chinese (win system) | ||||||||
| Invoice function | Support( for China market only(win system) | ||||||||
| Secondary development | Not support | ||||||||
| Barcode output editing | support adding prefix and suffixes, hidden characters | ||||||||
| Symbol Contrast | 20% | ||||||||
| Scanning Angle | Horizontal : ±70° Vertical:±60° Rotated: ±360° | ||||||||
|
Human- computer interaction |
Indicator light | Red & Blue indicator light | |||||||
| Buzzer | Start Tips,Reading code tips | ||||||||
|
Environment Parameters |
Drop | Design to withstand 1.5 M drops to concrete 3 times | |||||||
| Environmental Sealing | IP54 | ||||||||
| Working Temperature | -20-55℃ | ||||||||
| Conserve Temperature | -20-60℃ | ||||||||
| Working Humidity | 5-95% Non-Condensed | ||||||||
| Conserve Humidity | 5-95% Non-Condensed | ||||||||
| Environment Light | 0-70000LUX | ||||||||
|
Physical Parameters |
Net Weight | 372g | |||||||
| Packing Weight | 500g | ||||||||
| Data line length | 180CM(±3CM) | ||||||||
| Host Size(L*W*H) | 104.8*104.8*147mm | ||||||||
| Packing Size(L*W*H) | 180mm*168mm*121mm | ||||||||
| Interface | USB(Drive free), serial port | ||||||||
| working voltage | 5V | ||||||||
|
USB
|
Standby current | 133mA/0.665W | Serial port | Standby current | 357mA/1.785W | ||||
| Working current | 133mA/0.665w | Working current | 357mA/1.785W | ||||||
| Working current(Max) | 175mA/0.875W | Working current(Max) | 358mA/1.79W | ||||||
Application Of Smart POS Terminal
1. Retail
2. Restaurant& hospitality
3. Field services
4. Warehouse &manufacturing
FAQ
Q: Does your stand secured?
A: Yes, our products are durable metal construction. We have styles with key lock and with screw locked. Please see our brochure for more details.
Q: Would it be possible to order a sample of products?
A: Yes, definitely no problem to order one sample at first before bulk order.
Q: I would like to order custom tablet stand. Do you manufacture custom design tablet stand?
A: Yes, we have strong R&D center who can custom creative design for you. Please offer us your requirements.
Q: Is it possible to have our logo printed on top of it?
A: Yes, it is no problem to print logo on top of the tablet enclosure. Please offer us the logo picture and offer us international Pan-tone color code for the logo color.
Q: Are you a manufacturer?
A: Yes, we have our own factory with advanced facilities.
