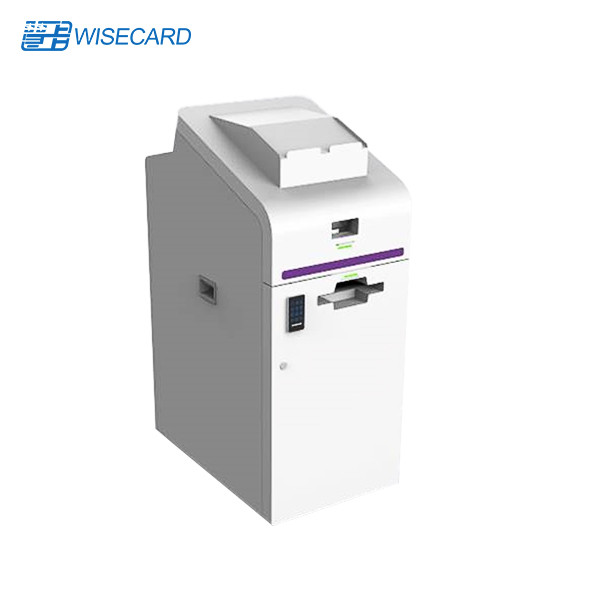

Self Service Video Smart Teller Machine Touchscreen Card Reader Printer Scanner
Contact Person : Steven Yao
Phone Number : +86-13424312532
WhatsApp : +8613424312532
| Minimum Order Quantity : | Negotiable | Price : | Negotiable |
|---|---|---|---|
| Packaging Details : | export carton | Delivery Time : | 2-6 weeks |
| Payment Terms : | T/T | Supply Ability : | 1000 units per month |
| Place of Origin: | China | Brand Name: | Wisecard |
|---|---|---|---|
| Certification: | CE, Rohs | Model Number: | 260T |
|
Detail Information |
|||
| Application: | Bank Branch | Standard: | EMV, PBOC, PCI |
|---|---|---|---|
| Display: | 19 Inch TFT LED Touch Screen | EPP: | PCI 4.0 Certified 16 Buttons |
| CardPrinter: | Flat Card Printer With Card Reader | Embossing: | Support Embossing And Rear Indent, Tipping |
| Camera: | 720P | CardReader: | Contactless, Contact, Magstripe |
| High Light: | self service Smart Teller Machine,Non Cash Smart Teller Machine,Wisecard self service ATM machine |
||
Product Description
Bank Non-cash Business Self Service Machine Equipment STM ATM Skimmer
Wisecard Smart Banking Solution
The Wisecard Smart Banking solution is highly compatible with numerous of CMS packages and Third Party systems.
Additionally we offer a Software Development Kit(SDK)to implement customizations inhouse,or customization service to meet a bank' s specific requirements.
Kiosk with Instant Card Issuance, A Lobby Instant Card Issuance System
On-demand brilliant and highly secure card issuance
Instant Card Printer & Embosser
Compatible with all the features of unselectable card dispenser
Instant changing card with same card number
Instant personalized DIY card printing
(make new card with personalized picture/card number on spot)
Print and dispenser card according to spot customer' s needs(reduce sleep / inactive card)
Instant lost card replacement
Printing flat & embossed card within 60S
(debit card credit card, social security card, health card, business card, joint name card... )
Powerful capacity: 6 locked built in replaceable card cassette(600 cards)and2reject/old card collection box(150 cards)
Easy deployment: lobby, small floor space(66*77*120cm)
| Function Description | |
| Self-service card replacement | Support replacing mag-stripe cards into chip cards with the same card number. The old card is stored in a separate compartment and managed safely |
| Enrollment and information collection | ID card based enrollment with collection of customer data and its verification via internet is supported. The Device is equipped to collect the customer’s photograph, fingerprint data, electronic signature and more. |
| Self-Service interface for basic financial transactions | Many common workflows for inquiries, payment transfers, top-up payment, electronic signing of contracts or agreements (for as E-banking, mobile banking) and more. |
| Intermediate agent business | Securities, funds, foreign exchange, financial products marketing; |
| Utility Payments (water, electricity, gas, mobile phone), Payments to urban transport cards, ETC, medical cards top-up and etc. | |
| Self-service card issuance | Self-Service Issuance of cards for banking or other high security cards. |
| Complete range of flat and embossed printing of multi-process cards including magnetic stripe, contact IC and contactless IC cards can be issued within 60 seconds. | |
| Supports instant debit and credit card dispensing; | |
| Support of re-issuance of highly customized (DIY) cards of replacement or lost cards. | |
| Self-service U-key dispensing (optional) | Support U-key, Password Manager dispensing, scanning of bar-codes, separately lockable card cassettes |
| WCT-260T Smart Teller Machie Specification | |
| Module | Technical Specifications |
| Cabinet & Accessories | Hard, thick and non-deforming materials |
| Surface treatment process: rust-proof, antiseptic, anti-friction | |
| Neat internal wiring, using drag track and front door for easy maintenance | |
| Independent ventilation system in line with bank requirements | |
| SIU | Sensors and Indicators Unit |
| Industrial PC | CPU: Core i series or equivalent technical indicators |
| Hard drive: 500G | |
| Memory: 4G | |
| Display | Display: 19'' 4:3 TFT LED |
| Resolution: 1024*768 (inclusive) or more | |
| Anti-glare (film): left and right viewing angle < = 30 degree | |
| Touch Screen | Touch Screen: 19''4:3 |
| Resolution: 4096*4096 | |
| Special requirements: anti-dust/ riot/ scratch | |
| Receipt Printer | Support full graphic printing |
| Width: 80mm | |
| Chinese font: Arial or traditional; English font | |
| Support GB 18030 character set and GBK character set | |
| Black spot recognition | |
| Continuous paper printing, automatic cutting, to provide semi-cut/ full cut function | |
| EPP | PCI 4.0 certified |
| 16 buttons | |
| Flat Card Printer (with card reader) |
Support duplex printing |
| PASS BCTC test and certification | |
| Support PBOC, EMV standards | |
| Six card hoppers with independent lock | |
| Print: picture, photo, name, validity, CVV and etc | |
| Six card-dispensing box, total capacity are: 600 pcs flat card | |
| Double card-collecting box: total capacity: 150 pcs flat card | |
| Embosser | Support Embossing and rear indent, Tipping |
| Pass BCTC test and certification | |
| Support PBOC, EMV standars | |
| Camera | Support concealment |
| Support 720P | |
| ID Card Reader | Electrically load in card |
| Meet the requirements of the Ministry of Public Security | |
| Compulsory return ID card | |
| Fingerprint Scanner | Capacitive |
| Detection of dermis | |
| Contactless Card Reader | Secure module avaliable |
| Follow ISO/ IEC 14443 standard | |
| Support EMV standard requirements | |
| Power fail safeguard function for the data stored in the card reader | |
| Human Sensor | Can sense that customer pis standing in front |
| OS | WIN7, WIN10 or other OS |
| Digital Pen | Handwriting fidelity; Integrated handwritten singnature board+electromagnetic induction pen |
| Bar Code Scanner | Support both one dimension and two-dimension code (QR code) |
Trade conditions
1. Payment Terms: T/T LC, Western Union, Money Gram, Paypal, etc...
2. Sample Lead Time: 2-4days when there is stockand57ays for custom design or logo adding.
3. Mass Production Lead Time: 20-25days, and 30-35days for custom design.
4. Shipping Port: Shenzhen, China. We can manage shipment from the beginning to the end for you.
5.Door to door service: We have good channels by DHL/UPS/FEDEX/TNT as options for you.
Quality guarantee:
1. All our products have one year guarantee from the shipping date
2. Under Guarantee: if any non-human damage happen, we’ll offer free pairing or replacement, including delivery cost
3. Out of guarantee: we offer repairing pats at lower cost, and service free in charge.
Custom design is welcome :
Customized projects accepted including software and hardware.
Don't hesitate to share your idea with us, we have experienced engineer team and always do our best to help client's project.
Company Information:
Wisecard (a WiseGroup company) is a global solution provider that has been providing innovative payment and secure solutions to financial institutions, government entities and telco operators worldwide.
Wisecard have been providing EMV smart card, EMV biometric card, EMV perso software, card issuance, EMV embossers, Smart POS machine, Android POS, POS terminals, smart banking, smart teller machine, kiosk, vending machine, biometric POS, Hardware Secure Module, mobile payment platform, private label card solution, prepaid card solution, card management system to partners in more than 60 countries worldwide. Wisecard’s product suite empower large global financial institutions and government sectors as well as small to medium sized retail banks.
Wisecard solutions are adapting to the highest and latest secure standard, and the solutions have been fully tested and certified by international test labs, like FBI, STQC, EMV, PCI DSS, PA DSS, VISA, MasterCard, China UnionPay, JCB, AmEx, Discover, RuPay and etc.
Notes: FBI, STQC, EMV, PCIDSS, PADSS, Visa, MasterCard, China UnionPay, JCB, AmEx, Discover, RuPay is a registered trademark. All trademarks referenced here are the property of the respective owners.
